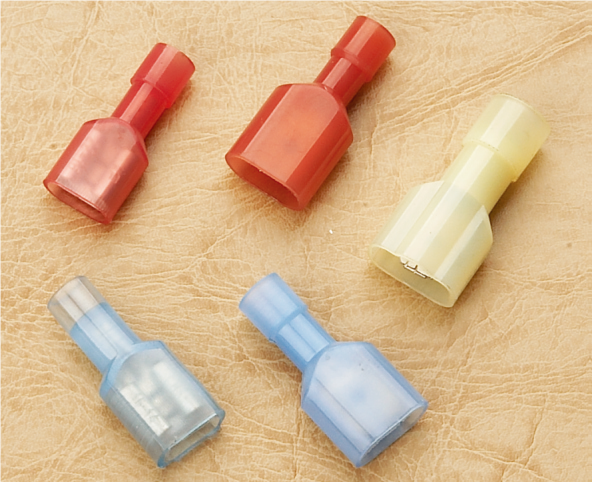

Male and Female Full‑Insualting Joint(Nylon)
Imax: 10A material: yellow copper conductor
Insulation cover material: nylon
| ITEM NO. | MEWA TAB (mm) | DIMENSION (mm) | AWG mm2 | Color | ||||||
| W | F | L | B | D | C | T | ||||
| FDFN 1.25‑250 | 0.8x6.35 | 6.6 | 7.3 | 22.0 | 11.0 | 4.0 | 1.7 | 0.4 | 22‑16 A.W.G 2 0.5~1.5mm | Red |
| MDFN 1.25‑250 | 6.35 | 7.7 | 23.0 | |||||||
| Imax:15A | ||||||||||
| ITEM NO. | MEWA TAB (mm) | DIMENSION (mm) | AWG mm2 | Color | ||||||
| W | F | L | B | D | C | T | ||||
| FDFN 2‑250 | 0.8x6.35 | 6.6 | 7.3 | 22.0 | 11.0 | 4.0 | 2.3 | 0.4 | 16‑14 A.W.G 1.5~2.5mm | Blue |
| MDFN 2‑250 | 6.35 | 7.7 | 24.0 | |||||||
| Imax:24A | ||||||||||
| ITEM NO. | MEWA TAB (mm) | DIMENSION (mm) | AWG mm2 | Color | ||||||
| W | F | L | B | D | C | T | ||||
| FDFN 5.5‑250 | 0.8x6.35 | 6.6 | 7.3 | 24.0 | 13.0 | 6.3 | 3.4 | 0.4 | 12‑10 A.W.G 4~6mm2 | Yellow |
| MDFN 5.5‑250 | 6.35 | 7.7 | 25.0 | |||||||
| Imax: 10A material: yellow copper conductor Insulation cover material: nylon |
||||||||||
| ITEM NO. | MEWA TAB (mm) | DIMENSION (mm) | AWG mm2 | Color | ||||||
| W | F | L | B | D | C | T | ||||
| FDFNY 1.25‑250 | 0.8x6.35 | 6.6 | 7.3 | 22.0 | 12.0 | 4.0 | 1.7 | 0.45 | 22‑16 A.W.G 0.5~1.5mm2 | Red |
| MDFNY 1.25‑250 | 6.35 | 7.7 | 23.0 | 11.0 | 4.0 | 1.7 | 0.8 | |||
| Imax:15A | ||||||||||
| ITEM NO. | MEWA TAB (mm) | DIMENSION (mm) | AWG mm2 | Color | ||||||
| W | F | L | B | D | C | T | ||||
| FDFNY 2‑250 | 0.8x6.35 | 6.6 | 7.3 | 23.0 | 12.0 | 4.5 | 2.3 | 0.45 | 16‑14 A.W.G 1.5~2.5mm2 | Blue |
| MDFNY 2‑250 | 6.35 | 7.7 | 24.0 | 11.0 | 4.5 | 2.3 | 0.8 | |||
| Imax:24A | ||||||||||
| ITEM NO. | MEWA TAB (mm) | DIMENSION (mm) | AWG mm2 | Color | ||||||
| W | F | L | B | D | C | T | ||||
| FDFNY 5.5‑250 | 0.8x6.35 | 6.6 | 7.3 | 23.0 | 12.0 | 5.0 | 3.4 | 0.45 | 12‑10 A.W.G 2 4~6mm | Yellow |
| MDFNY 5.5‑250 | 6.35 | 7.7 | 24.0 | 11.0 | 5.0 | 3.4 | 0.8 | |||
| RSRV 5.5‑3.5 | #6 | 3.7 | 7.2 | 21.4 | 5.9 | 12.5 | 6.7 | Yellow | ||
