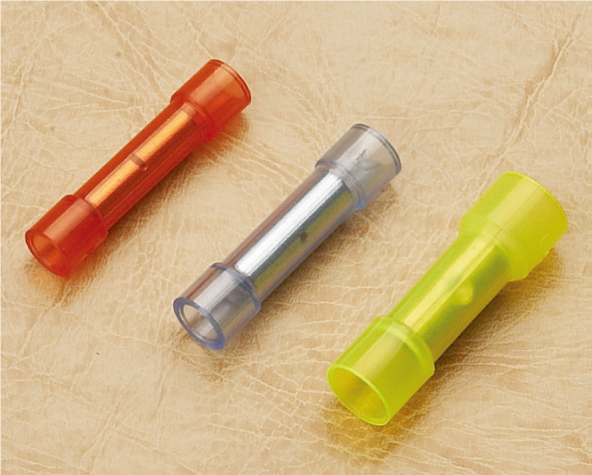

Long Full‑InsulatingMiddle Joint(Nylon)
- ImaX : 26‑22 A.W.G: 9A 22‑16 A.W.G: 19A
16‑14 A.W.G: 27A 12‑10 A.W.G: 48A - Maximum temperature resistance:
105°C Ui=600V
| Item No. | Dimension (mm) | A.W.G. mm2 | Color | ||
| L | D | d | |||
| BNY‑1.25 | 27.3 | 3.2 | 1.7 | 22‑16 A.W.G 0.5~1.5mm | Red |
| BNY‑2 | 27.3 | 3.8 | 2.3 | 2 16‑14 A.W.G 1.5~2.5mm | Blue |
| BNY‑5.5 | 27.3 | 5.3 | 3.4 | 12‑10 A.W.G 4.0~6.0mm2 | Yellow |
| Heat Shrinking Middle Joint | |||||
| Item No. | Dimension (mm) | A.W.G. mm2 | Color | ||
| L | D | d | |||
| KY‑1 | 37 | 6.0 | 1.7 | 22‑16 A.W.G 0.5~1.5mm | Red |
| KY‑2 | 37 | 7.5 | 2.3 | 2 16‑14 A.W.G 1.5~2.5mm | Blue |
| KY‑5 | 52 | 8.0 | 3.4 | 12‑10 A.W.G 4.0~6. 0mm2 | Yellow |
