Liquid-tight Conduits

Liquid-tight Conduits

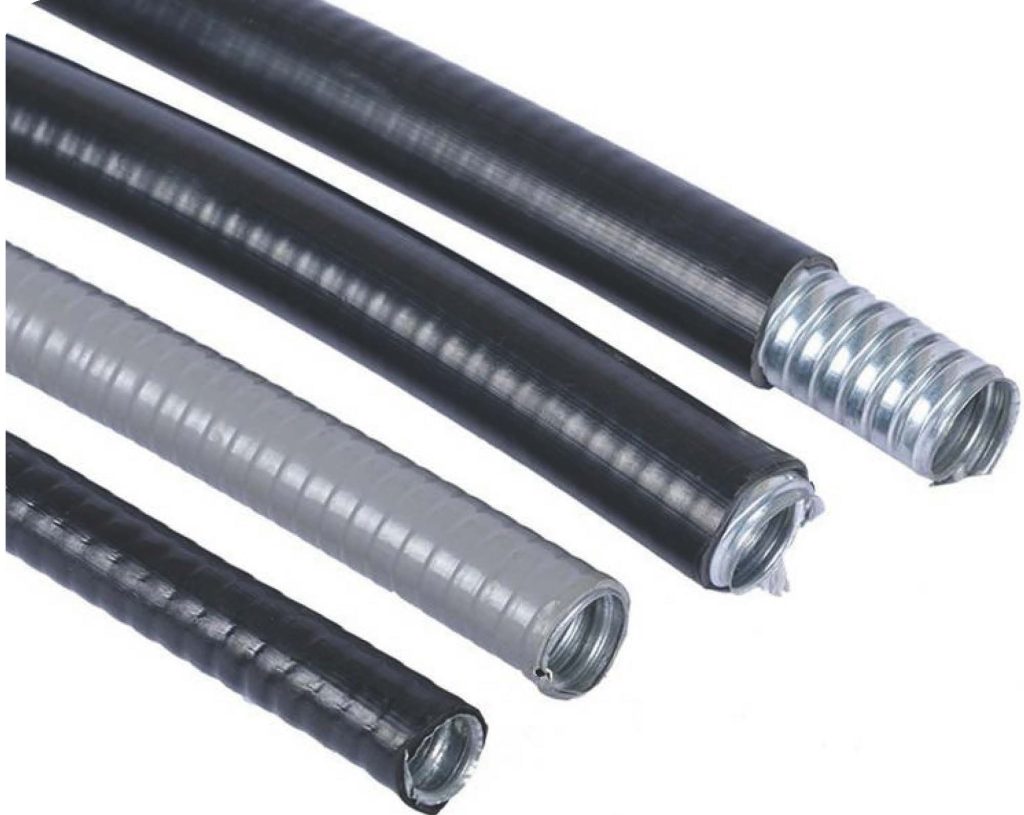

Liquid-tight conduits are made of antioxidant PVC material, featuring a smooth interior for easier wire pulling.

Safety and Reliability: Our electrical conduits resist corrosion, wear, oil, water, acid, and metal chips, making them ideal for harsh environments. They offer excellent tensile and compressive strength and are suitable for outdoor, UV-resistant, and direct burial applications.

Easy Installation: No dis-assembly required, simplifying wire installation. Just push the conduit onto the ferrule and tighten the dome sealing nut. Easily cut to the desired length with a utility knife or PVC cutter.

Wide Application: Liquid-tight electrical conduits are suitable for AC equipment, machine tools, marine equipment, motors and controls, printing equipment, pumps, refrigeration systems, transformer connections, and outdoor lighting.

ITEM.NO.SizeOut
Diameter
[mm)
Natural Bending (mm)Maximum Axial Force (mm)Package (m)
MetricBritish
Standard
MT-6Φ63/16"9.00±0.2540335100
MT-8Φ85/16"11.8+0.3045470100
MT-10Φ101/4'14.5±0.3055590100
MT-12Φ12---16.5±0.3560710100
MT-13Φ133/8'17.5±0.3565765100
MT-15Φ15---20.2±0.358088550
MT-16Φ161/2'21.2±0.358594050
MT-19Φ19---24.5±0.4095112050
MT-20Φ203/4'25.5±0.40100118050
MT-25Φ251"31.7±0.45120145025
MT-32Φ321 1/4'39.6±0.50150188525
MT-38Φ381 1/2'46.6±0.60180224020
MT-51Φ512"59.5±1.00220300010
MT-64Φ642 1/2'73.5± 1.50310377010
MT-75Φ753"84.5±2.00350440510
MT-100Φ1004"109.0±3.0410470010

×
