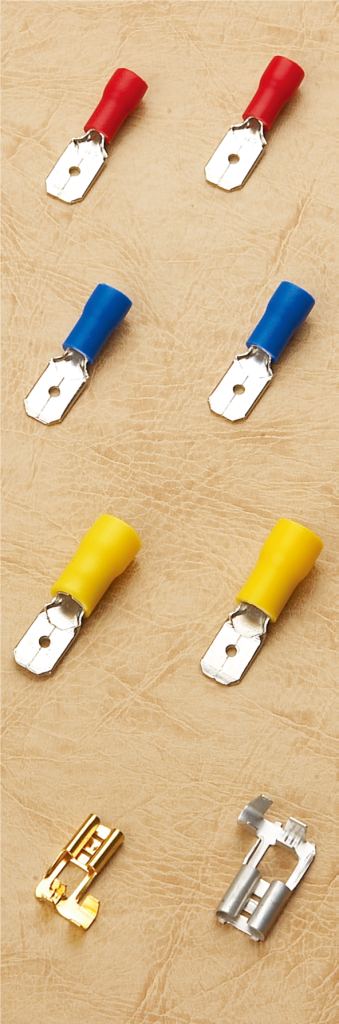

Wire section 0.5~1.5mm²(22~16) Imax=10A
Wire section 1.5~2.5mm²(16~14) Imax=15A
Wire section 4~6mm²(12~10) Imax=24A
Chip connector socket 6.3
| 0.5~1.5mm²(22~16) Imax=10A | |||||||
| Item No. | MEMA TAB (mm) | Thickness of material (mm) | DIMENSIONS | ||||
| B (mm) | d (mm) | D (mm) | L (mm) | H (mm) | |||
| MDD 1.25‑110(8) | 0.8X2.8 | 0.8 | 2.8 | 1.70 | 4.3 | 17.7 | 10.0 |
| MDD 1.25‑187(5) | 0.5X4.75 | 0.5 | 4.75 | 1.70 | 4.3 | 20.0 | 10.0 |
| MDD 1.25‑187(8) | 0.8X4.75 | 0.8 | 4.75 | 1.70 | 4.3 | 18.5 | 10.0 |
| MDD 1.25‑250 | 0.8X6.35 | 0.4 | 6.35 | 1.70 | 4.3 | 21.0 | 10.0 |
| 1.5~2.5mm²(16~14) Imax=15A | |||||||
| Item No. | MEMA TAB (mm) | Thickness of material (mm) | DIMENSIONS | ||||
| B (mm) | d (mm) | D (mm) | L (mm) | H (mm) | |||
| MDD 2‑187(5) | 0.5X4.75 | 0.5 | 4.75 | 2.3 | 4.3 | 20.0 | 10.0 |
| MDD 2‑187(8) | 0.8X4.75 | 0.8 | 4.75 | 2.3 | 4.3 | 18.5 | 10.0 |
| MDD 2‑250 | 0.8X6.35 | 0.4 | 6.35 | 2.3 | 4.3 | 21.0 | 10.0 |
| 4~6mm²(12~10) Imax=24A | |||||||
| Item No. | MEMA TAB (mm) | Thickness of material (mm) | DIMENSIONS | ||||
| B (mm) | d (mm) | D (mm) | L (mm) | H (mm) | |||
| MDD 5.5‑250 | 0.8X6.35 | 0.4 | 6.35 | 3.4 | 5.7 | 25.0 | 14.0 |
| Chip connector socket 6.3 | |||||||
| Item No. | METAL | WIRE RANGE | DIMENSIONS (mm) | Thickness | |||
| W | L | E | |||||
| DJ6211‑D6.3B | BRASS | 1.0~1.5 | 7.7 | 13.8 | 7.7 | 0.35 | |
