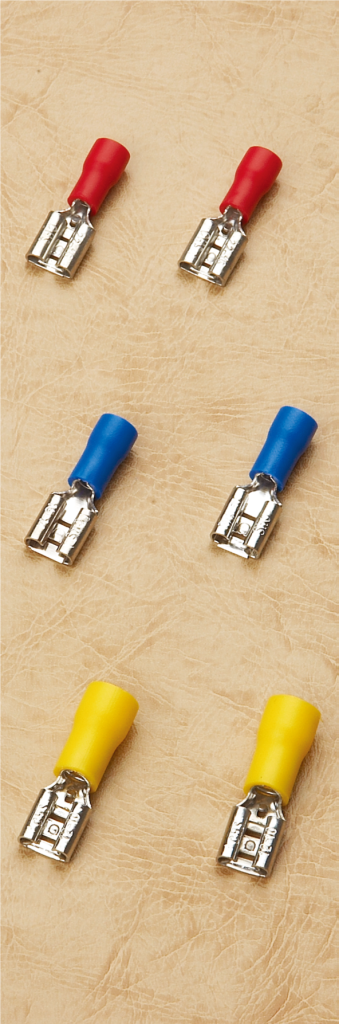

Insulated Female Disconnects
Wire section 0.5~1.5mm²(22~16) Imax=10A
Wire section 1.5~2.5mm²(16~14) Imax=15A
Wire section 4~6mm²(12~10) Imax=24A
| 0.5~1.5mm²(22~16) Imax=10A | |||||||
| Item No. | MEMA TAB (mm) | Thickness of material (mm) | DIMENSIONS | ||||
| B (mm) | d (mm) | D (mm) | L (mm) | H (mm) | |||
| FDD 1.25‑110(5) | 0.5X2.8 | 0.3 | 3.8 | 1.70 | 3.80 | 19.0 | 10.0 |
| FDD 1.25‑110(8) | 0.8X2.8 | 0.3 | 3.8 | 1.70 | 3.80 | 19.0 | 10.0 |
| FDD 1.25‑187(5) | 0.5X4.75 | 0.35 | 5.6 | 1.70 | 3.80 | 19.0 | 10.0 |
| FDD 1.25‑187(8) | 0.8X4.75 | 0.35 | 5.6 | 1.70 | 3.80 | 19.0 | 10.0 |
| FDD 1 .25‑205 | 0.5X5.2 | 0.35 | 6.5 | 1.70 | 3.80 | 20.0 | 10.0 |
| FDD 1.25‑250 | 0.8X6.35 | 0.4 | 7.4 | 1.70 | 3.80 | 21.0 | 10.0 |
| 1.5~2.5mm²(16~14) Imax=15A | |||||||
| Item No. | MEMA TAB (mm) | Thickness of material (mm) | DIMENSIONS | ||||
| B (mm) | d (mm) | D (mm) | L (mm) | H (mm) | |||
| FDD 2‑110(5) | 0.5X2.8 | 0.3 | 3.8 | 2.3 | 4.3 | 19.0 | 10.0 |
| FDD 2‑110(8) | 0.8X2.8 | 0.3 | 3.8 | 2.3 | 4.3 | 19.0 | 10.0 |
| FDD 2‑187(5) | 0.5X4.75 | 0.35 | 5.6 | 2.3 | 4.3 | 19.0 | 10.0 |
| FDD 2‑187(8) | 0.8X4.75 | 0.35 | 5.6 | 2.3 | 4.3 | 19.0 | 10.0 |
| FDD 2‑205 | 0.5X5.2 | 0.35 | 6.5 | 2.3 | 4.3 | 20.0 | 10.0 |
| FDD 2‑250 | 0.8X6.35 | 0.4 | 7.4 | 2.3 | 4.3 | 21.0 | 10.0 |
| FDD 2‑312 | 0.8X8.0 | 0.4 | 9.0 | 2.3 | 4.3 | 23.0 | 10.0 |
| 1.5~2.5mm²(16~14) Imax=15A | |||||||
| Item No. | MEMA TAB (mm) | Thickness of material (mm) | DIMENSIONS | ||||
| B (mm) | d (mm) | D (mm) | L (mm) | H (mm) | |||
| FDD5.5‑250 | 0.5X6.35 | 0.4 | 7.4 | 3.4 | 5.7 | 25.0 | 14.0 |
| FDD5.5‑375 | 1.2X9.4 | 0.5 | 10.9 | 3.4 | 5.7 | 29.6 | 14.0 |
