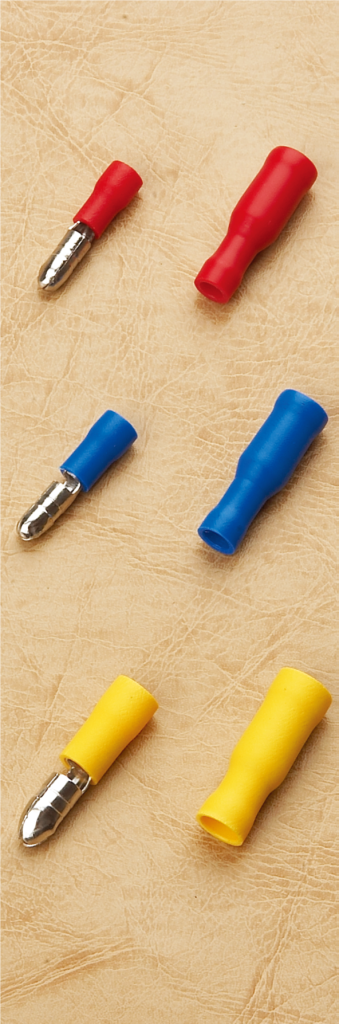

Insulated Bullet & Receptacle Disconnects
Wire section 0.5~1.5mm²(22~16) Imax=10A
Wire section 1.5~2.5mm²(16~14) Imax=15A
Wire section 4~6mm²(12~10) Imax=24A
Wire section 0.5~1.5mm²(22~16) Imax=10A
Wire section 1.5~2.5mm²(16~14) Imax=15A
Wire section 4~6mm²(12~10) Imax=24A
| 0.5~1.5mm²(22~16) Imax=10A | ||||||||
| Item No. | Thickness of material (mm) | DIMENSIONS | Color | |||||
| b (mm) | F (mm) | D (mm) | d (mm) | H (mm) | L (mm) | |||
| MPD 1 .25‑156 | 0.4 | 3.8 | 1.70 | 3.80 | 19.0 | 10.0 | 21.0 | Red |
| 1.5~2.5mm²(16~14) Imax=15A | ||||||||
| Item No. | Thickness of material (mm) | DIMENSIONS | Color | |||||
| b (mm) | F (mm) | D (mm) | d (mm) | H (mm) | L (mm) | |||
| MPD 2‑156 | 0.4 | 4.0 | 16.0 | 2.7 | 1.7 | 10.0 | 21.0 | Blue |
| MPD 2‑195 | 0.4 | 5.0 | 16.0 | 2.7 | 1.7 | 10.0 | 21.0 | Blue |
| 4~6mm²(12~10) Imax=24A | ||||||||
| Item No. | Thickness of material (mm) | DIMENSIONS | Color | |||||
| b (mm) | F (mm) | D (mm) | d (mm) | H (mm) | L (mm) | |||
| MPD 5.5‑195 | 0.4 | 5.0 | 11.0 | 4.5 | 3.4 | 14.0 | 25.0 | Yellow |
| 0.5~1.5mm²(22~16) Imax=10A | ||||||||
| Item No. | Thickness of material (mm) | DIMENSIONS | Color | |||||
| b (mm) | F (mm) | D (mm) | d (mm) | H (mm) | L (mm) | |||
| FRD 1.25‑156 | 0.4 | 4.0 | 16.0 | 2.7 | 1.7 | 13.0 | 24.5 | Red |
| 1.5~2.5mm²(16~14) Imax=15A | ||||||||
| Item No. | Thickness of material (mm) | DIMENSIONS | Color | |||||
| b (mm) | F (mm) | D (mm) | d (mm) | H (mm) | L (mm) | |||
| FRD 2‑195 | 0.4 | 4.0 | 6.3 | 3.3 | 2.3 | 14.0 | 24.5 | Blue |
| FRD 2‑195 | 0.4 | 5.0 | 7.0 | 3.3 | 2.3 | 14.0 | 24.5 | Blue |
| 4~6mm²(12~10) Imax=24A | ||||||||
| Item No. | Thickness of material (mm) | DIMENSIONS | Color | |||||
| b (mm) | F (mm) | D (mm) | d (mm) | H (mm) | L (mm) | |||
| FRD 5.5‑195 | 0.4 | 5.0 | 7.0 | 4.5 | 3.4 | 14.0 | 29.5 | Yellow |
