Cable Repair Sleeves

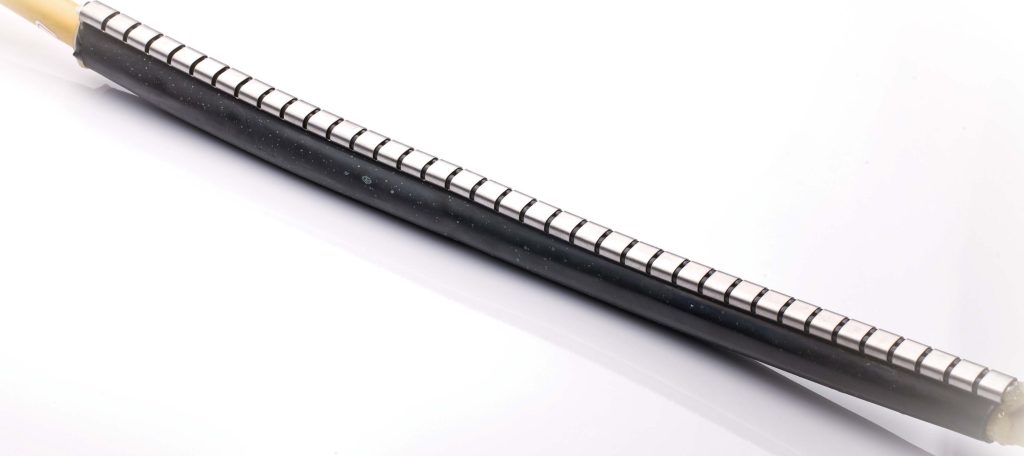

UCSM is a kind of wraparound repairing sleeve, which used for repairing the breakage of the cable and the cable jacket. It can easily and quickly seal up and insulates the damaged outer jacket of the cable. Easily operation and widely range provides a suitable selection for applying in any situations. Inner hot-melt adhesive can solve the waterproof problem.

Characteristics:

  • Shrinkable Ratio: 3:1
  • Resistant to UV and waterproof
  • Excellent electricity and insulation

Operating Temperature Range:

  • Operating temperature: -40°C~110°C
  • Minimum shrink temperature: 65’C
  • Minimum fully recovery temperature :120’C
  • Excellent electricity and insulation

Product Dimensions
Part NumberAs Supplied (mm)After recovered (mm)Standard LengthCable Diameter
I.D. (min)I.D. (max)
UCSM0363610110~30
UCSM0S05015115~40
UCSM0808025125~70
UCSMl0010030130~90
UCSM13513538135~120
UCSM18518555155~165
UCSM22022065165~200
Technical Data
PropertyTest MethodTypical Value
Tensile strengthISO3717 MPa min.
Ultimate ElongationISO37350% min.
DensityISO 1183 Method A1.0-1.2g/cm3
HardnessISO 86850-70 D
Accelerated AgeingISO3714 MPa min.
ISO37300% min.
Thermal EnduranceIEC 60216120°c
Low Temperature FlexibilityASTMD 2671 Procedure CNo cracking
Dielectric StrengthIEC 602431mm 180kv/cm min. 3.5mm 120kv/cm min.
Volume ResistivityIEC 600931x1012ocm min.
Dielectric ConstantIEC 602505 max.
Water AbsorptionISO 62 Method0.5% max
Resistance to LiquidsISO3714 MPa min.
ISO37300% min.
Resistance to FungiASTMG21Pass Rating1

×
